WIWU 5-in-1 Multi-function Portable Fan (Black)

Description

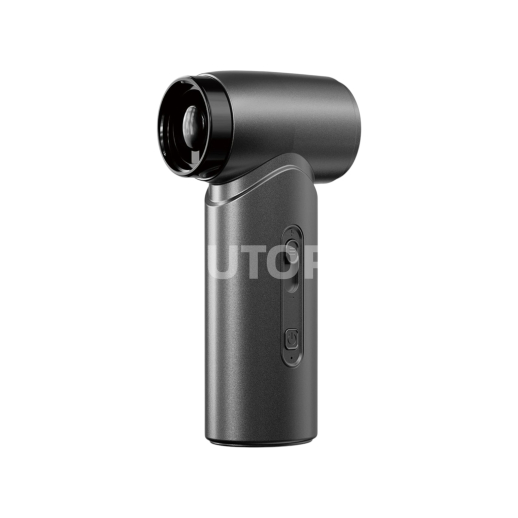

The WIWU 5-in-1 Multi-function Portable Fan (Hurricane King series, model Wi-FS015) is a portable technical support and maintenance tool in an ultra-compact format, specifically developed to meet the rigorous requirements of smartphone and computer repair workshops. This versatile, high-kinetic efficiency module serves as an eco-friendly and economical alternative to traditional disposable compressed air cans, which are prone to pressure drops and pollution. It offers B2B retailers and technicians a multi-function tool capable of instantly switching from a comfort cooler to a micro-particle extraction device for workbenches or sensitive optical components.

The device's internal engineering is based on an industrial-grade brushless synchronous motor, capable of generating a maximum rotation speed of 130,000 RPM. This raw power propels a highly concentrated laminated airflow that reaches a linear speed of 19 metres per second, essential for dislodging embedded dust, carbonised solder flux residues, or micro-debris located under BGA chips, charging ports, or laptop keyboards. Airflow modulation is managed by a sequential electronic controller offering 5 distinct power levels. Its thermoformed high-density ABS polymer housing features an anti-static metallic paint finish, ensuring excellent thermal insulation, high durability against light drops on the workbench, and optimal grip.

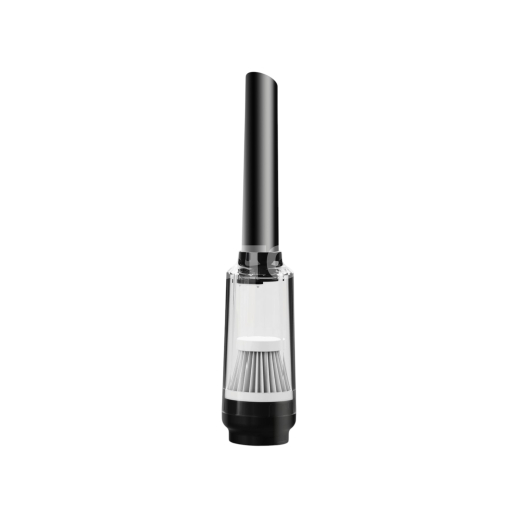

Thanks to its dual-flow architecture, the rear suction can be used for precision micro-cleaning using the specific included nozzles. The Wi-FS015 incorporates a 4000 mAh Lithium-ion battery operating at a nominal voltage of 7.4V, delivering the amperage necessary to support the peak loads of the brushless motor. This energy reserve can also be used in power bank mode via its bidirectional USB-C port to secure emergency charging for a smartphone. A high-brightness LED diode completes the front assembly to ensure perfect illumination of shadowed areas during delicate work on motherboards.

Technical Specifications

• Manufacturer reference: Wi-FS015 (Hurricane King)
• Technology / Material: Brushless induction motor (130,000 RPM), reinforced anti-static technical ABS chassis
• Compatibility: Universal (Workshop cleaning, precision electronic maintenance, computer dusting, portable cooling)
• Dimensions: 140 mm × 74 mm × 50 mm
• Weight: 276 g
• Power / Standards: Integrated 4000 mAh Li-ion battery (7.4V) / USB-C Input and Output 5V × 2A / CE, RoHS certifications
• Maximum airflow: 19 m/s configurable across 5 electronic levels

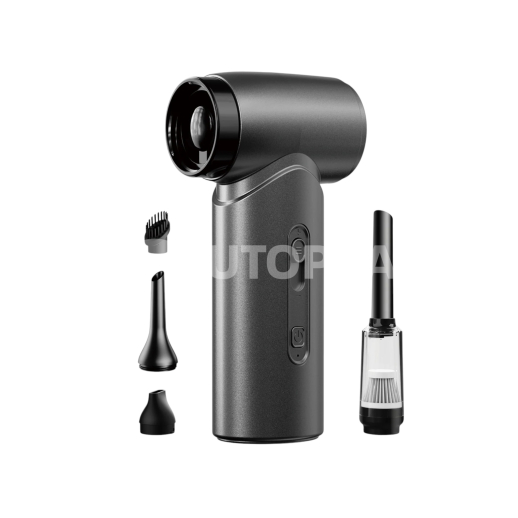

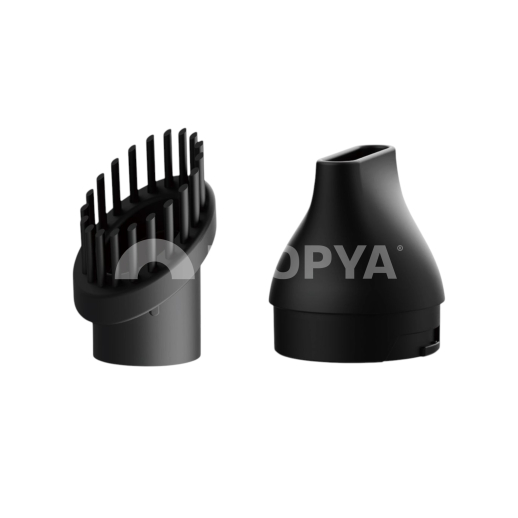

• Included accessories: 5 nozzles and airflow guide tips, 1 fine cleaning brush, 1 USB-C charging cable

Workshop Advice & Usage

For dusting motherboards or drying components after treatment with isopropyl alcohol (IPA), you must use the provided conical reduction nozzles to maximise kinetic pressure without bringing the device chassis closer than 10 cm to the circuits, thus avoiding any risk of electrostatic discharge (ESD) transfer. Critical warning: when using the suction function via the rear nozzle, ensure you never let the device absorb rigid or dense metallic objects (micro-screws, reballing solder balls, shielding debris). At 130,000 RPM, the impact of a solid element would instantly destroy the geometry of the internal turbine blades, which would void the manufacturer's warranty. To preserve the chemistry of the 7.4V lithium cells, it is recommended not to use speed level 5 continuously for more than 5 minutes to prevent any internal thermal overheating.
