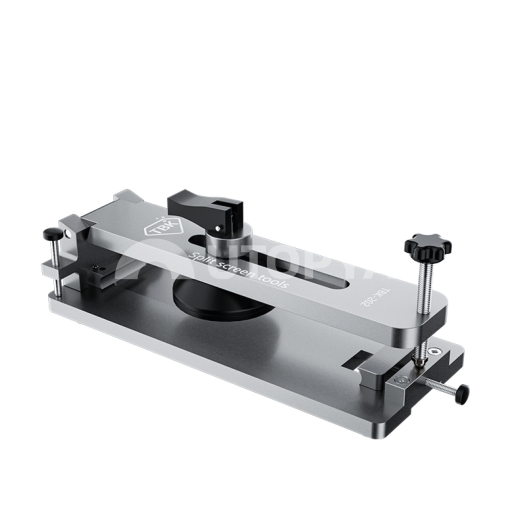

TBK-202 Opening Tool - iPhone 12 and 13 Series (All Versions)

Description

The TBK-202 is the reference tool for the safe opening of iPhone 12 and iPhone 13 screens. With the arrival of these models, Apple reinforced the waterproof adhesive, making traditional disassembly more complex and risky for the OLED screen. The TBK-202 was specifically developed to meet this challenge. By using a high-performance suction cup system coupled with a precision screw, it allows for a perfectly vertical traction force. This technique ensures that the screen lifts uniformly, thus protecting ultra-sensitive internal components, such as the earpiece flex cables and Face ID sensors, which can break during an opening that is too abrupt or poorly oriented.

Its ergonomic and stable structure offers maximum safety to the technician. No more need to force with sharp tools that risk scratching the chassis or piercing the battery. The TBK-202 transforms the disassembly of the 12 and 13 series into a standardised, clean, and professional procedure. Whether you are working on a Mini or a Pro Max model, this tool ensures a firm hold and smooth separation, drastically minimising the breakage rate during the initial repair phase.

Technical Specifications

• Reference: TBK-202 (Series 12/13 Screen Opener)
• Strict Compatibility: iPhone 12 / 12 Mini / 12 Pro / 12 Pro Max and iPhone 13 / 13 Mini / 13 Pro / 13 Pro Max
• Mechanism: Micrometric screw lever for total force control
• Gripping System: High-density vacuum-assisted suction cup
• Design: Robust metal chassis with soft-touch protection pads
• Usage: Fast opening without damaging the original waterproof seal
• Dimensions: Adapted to the specific formats of Apple flat chassis

Workshop Advice & Usage

The adhesive on the 12 and 13 series is particularly stubborn. Technical tip: Before positioning the TBK-202, use a heating mat set to 75°C for 2 to 3 minutes to soften the perimeter glue. Once the screen is slightly lifted by the screw, insert a very thin plastic pick to gently cut the softened seal. Do not attempt to remove the screen entirely with the tool; its role is to create the initial safety opening. For cracked screens, remember to apply a transparent adhesive film to the glass to ensure the suction cup's airtightness.
