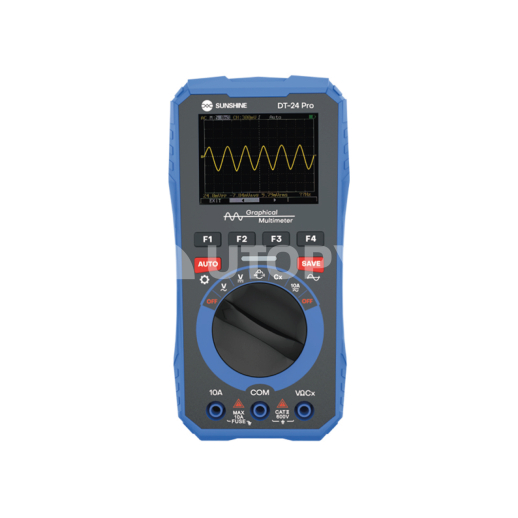

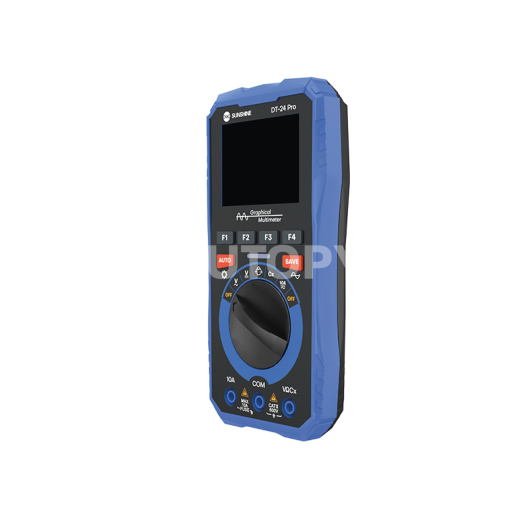

SUNSHINE DT-24 Pro Oscilloscope Multimeter - 2-in-1 Signal Diagnostic

Description

The SUNSHINE DT-24 Pro is the ultimate diagnostic tool for technicians looking to take their micro-soldering skills to the next level. Combining the reliability of a high-precision True RMS multimeter with the analytical power of a digital oscilloscope, this compact tool allows you to "see" electricity where a traditional multimeter only "reads" an average. Its large color screen clearly displays waveform shapes of your signals, making it easy to detect voltage micro-dropouts or corrupted data signals on the I2C or SPI lines of modern motherboards.

Designed for efficiency, the DT-24 Pro features intelligent automatic selection mode and a smooth graphical interface. Its built-in lithium battery and USB-C charging make it a modern, eco-friendly, and ready-to-use tool. Whether you are tracking down a subtle current leak, checking the cleanliness of a backlight signal, or measuring the resistance of a SMD component, the DT-24 Pro offers outstanding stability and responsiveness. It is the perfect investment to combine two bulky laboratory devices into a portable and ergonomic format.

Technical Specifications

• Reference: SUNSHINE DT-24 Pro (Smart Oscilloscope Multimeter)
• Display: 9999 True RMS points on color LCD screen
• Oscilloscope Mode: Waveform visualization with basic time and gain settings
• Measurement Range: DC/AC Voltage (up to 1000V), Current, Resistance, Capacitance, Frequency
• Special Tests: Diode, Audible Continuity, Temperature (with probe)
• Battery: High autonomy rechargeable lithium via USB-C port
• Safety: Intelligent anti-burn protection and CAT III safety category
• Storage: Ability to freeze image (Hold) and capture signal screenshots

Workshop & Usage Tip

Use the oscilloscope mode of the DT-24 Pro to check Clock or Reset signals during a "no-start" diagnosis. Technical Tip: If you suspect a faulty filter capacitor, switch to oscilloscope mode on the power line; if the trace is not a perfect straight line but shows ripples, the capacitor needs to be replaced. For continuity measurements, the DT-24 Pro's responsiveness is excellent, allowing for quick scanning of FPC connectors. Finally, always use the provided oscilloscope probes for high-frequency signal measurements to avoid any data distortion.
