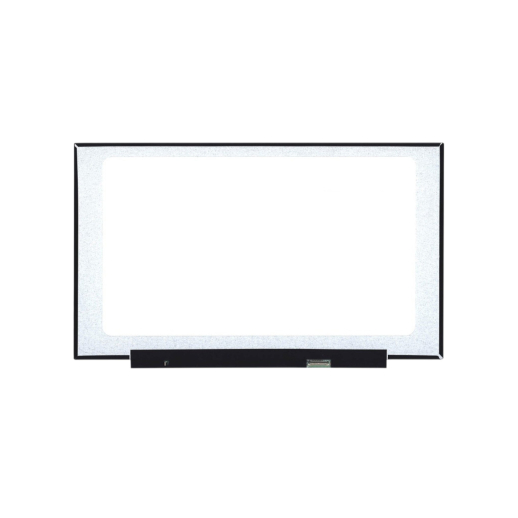

17.3" Slim LED Panel - HD+ 1600x900 - 30 Pins Right (Glossy)

Description

This 17.3-inch replacement LCD panel is a certified technical part for the maintenance of high-end portable systems and mobile workstations. Its "Slim" design allows for a reduction in internal space requirements, fitting perfectly into modern screen lids where the thickness no longer permits the use of standard LED panels. The 30-pin eDP (Embedded DisplayPort) interface ensures high-speed digital communication, minimising electromagnetic interference and optimising the display unit's power consumption.

The major advantage of this model lies in its Glossy surface finish. Unlike matte panels, the glossy coating allows for light transmission without diffraction, thus offering higher perceived contrast ratios and significantly more vivid colour saturation. This feature is particularly sought after by end-users focused on content creation, video entertainment, or photo editing, as it ensures a deeper and sharper visual rendering.

Its "Bracketless" mechanical structure (without mounting brackets) offers maximum mounting flexibility for repairers, allowing for integration using high-strength double-sided adhesives. The HD+ resolution of 1600 x 900 pixels provides an ideal technical compromise, offering a comfortable workspace while limiting the computational load on the graphics processor (GPU) compared to a Full HD panel, thus potentially extending the lifespan of the laptop's internal components.

Technical Specifications

• Material: TFT-LCD with WLED backlighting
• Compatibility: Universal (30-pin eDP connector, Right position)
• Dimensions: 398.1 mm x 232.8 mm x 3.5 mm
• Weight: ~540g
• Standards: 3.3V (VCC) / RoHS and REACH certified
• Resolution: 1600 x 900 (HD+)
• Finish: Glossy (Glare)

Workshop Advice & Usage

For professional assembly, ensure you perfectly clean the internal frame of the chassis before applying new mounting adhesives. Residue from old glue can create local thickness, causing visible pressure points on the liquid crystal. Scrupulously check the locking of the 30-pin connector: a poorly inserted ribbon cable can generate flickering or a total lack of backlighting. Safety reminder: any intervention must be carried out with the main battery disconnected to avoid blowing the backlight fuse on the motherboard.
