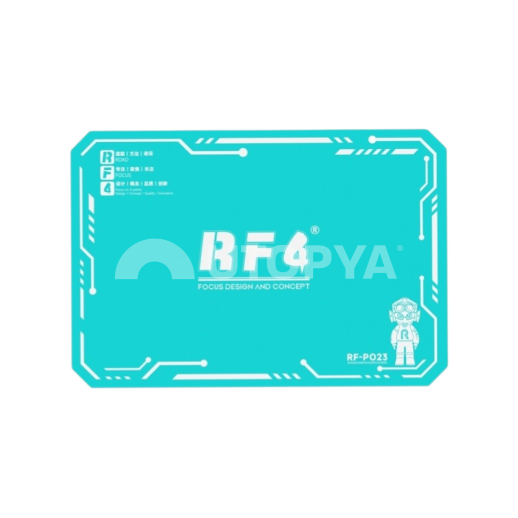

RF4 - Compact Silicone Repair Mat - 380x260mm (RF-PO23)

Description

The RF4 RF-PO23 repair mat is the essential protective accessory for technicians specialising in smartphone and tablet micro-repair. With dimensions of 380x260mm, this "Compact Type" model is specifically designed to maximise workbench space while offering top-tier thermal and electrostatic protection. Its size is ideal for placement directly on the base of a trinocular microscope, providing a clean and secure work surface for the most delicate micro-soldering operations.

In terms of durability, the RF-PO23 is manufactured from high-performance organic silicone capable of withstanding direct temperatures up to 500°C. This exceptional thermal resistance ensures that the mat will not blister or release toxic fumes during prolonged use of a hot air station for desoldering BGA components. Its inert chemical composition makes it resistant to common cleaning solvents (IPA, flux removers), ensuring a clean and non-sticky surface over the long term.

The ergonomics of the RF-PO23 mat rely on its non-slip texture, which prevents device chassis from sliding during reassembly phases. The distinctive blue colour of the RF4 range was chosen to reduce eye strain and provide maximum contrast, allowing for the instant spotting of black screws and small SMD components (0201, 0402) that could be lost on a darker surface.

Technical Specifications

• Reference: RF4 RF-PO23
• Material: High-quality organic silicone (Electronic grade)
• Dimensions: 380 mm x 260 mm
• Thermal resistance: 500°C (Direct heat and solder splashes)
• Properties: ESD (Antistatic), non-slip, solvent resistant
• Compatibility: Smartphones, smartwatches, handheld consoles, micro-electronics
• Advantages: Optimised compact format, easy cleaning, excellent thermal insulation

Workshop Advice & Usage

The RF-PO23 format is ideal for creating a mobile workstation or for equipping several technicians in a limited space. Recommended method: To maintain the silicone's grip and antistatic properties, clean the surface after each intervention with a 2UUL CL05 wipe and a little 99% isopropanol. Technical note: Although the mat is extremely heat-resistant, avoid cutting adhesives or thermal protections directly on the silicone with a scalpel blade to prevent nicking the protective surface. Its flexibility allows it to be folded or rolled without permanent deformation.
