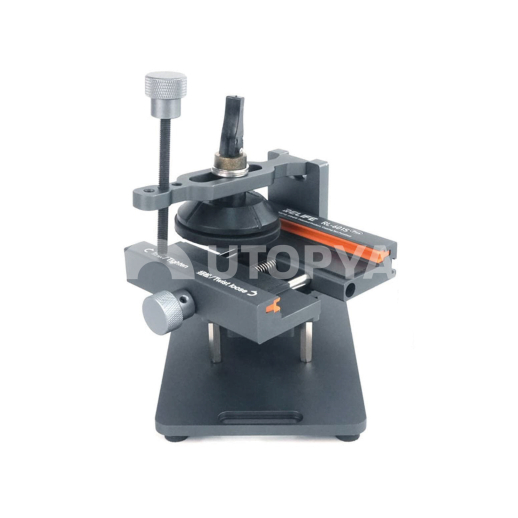

RELIFE RL-601S Plus Rotating Support and Opening Tool - 360° Precision

Description

The RELIFE RL-601S Plus is the ultimate holding tool for technicians specialising in smartphone refurbishment. Designed to simplify the most complex interventions, this 2-in-1 support allows any device to be securely fixed while offering total freedom of movement thanks to its 360° rotating axis. It is particularly effective for removing back glass with laser or heat, as well as for the secure opening of screens. Its integrated suction cup allows for precise tension to be applied to separate LCD or OLED panels from their chassis without risk of breakage, transforming a risky operation into a controlled and professional procedure.

Its high-quality aluminium structure guarantees perfect stability on the workbench, while the soft silicone contact areas protect the phone's edges against scratches. The RL-601S Plus does more than just hold the device; it optimises your working posture by allowing you to adjust the viewing angle according to your needs. Whether you are in the glue cleaning phase, micro-soldering on a charging connector, or final pressing after gluing, this universal support adapts to all situations, making it an indispensable investment for gaining speed and finishing quality.

Technical Specifications

• Reference: RELIFE RL-601S Plus (Multi-function Rotating Fixture)
• Rotation: 360° with angle locking system
• Mechanism: Integrated suction cup for screen opening
• Materials: Sandblasted aluminium and anti-scratch protective silicone
• Clamping: Universal adjustable (compatible with all models on the market)
• Usage: Back glass removal, screen opening, laser support, gluing
• Stability: Heavy base with non-slip pads
• Resistance: Designed to withstand high temperatures (hot air/laser)

Workshop Advice & Usage

When using the suction cup to open a screen, pre-heat the edges of the phone to soften the original adhesive. Technical tip: Use the rotation lock to stabilise the device when scraping epoxy glue residue; this prevents the support from moving under pressure. For back glass removal with a laser, ensure the silicone is clean to avoid any shifting of the phone during the engraving cycle. Finally, lubricate the rotating axis slightly from time to time to maintain optimal movement fluidity over the long term.
