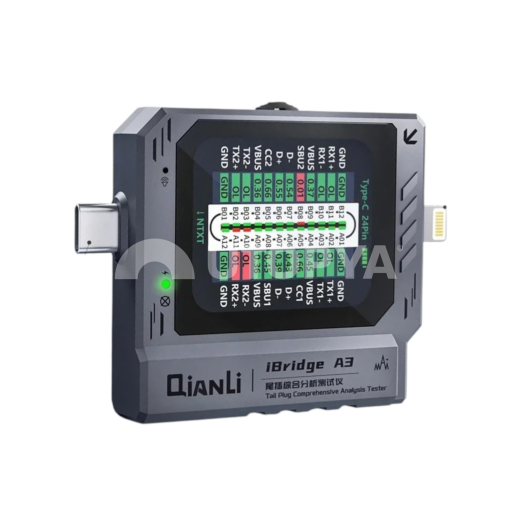

Qianli iBridge A3 - Lightning & USB-C Charging Port Diagnostic Tester

Technical Description

The Qianli iBridge A3 is the reference tool for quick charging fault diagnosis. Designed for demanding technicians, it allows checking the integrity of the charging connector without any prior disassembly. Whether you are dealing with an iPhone (Lightning) or a modern USB-C device (Android/iPhone 15+), the iBridge A3 instantly analyses whether the signal is correctly passing through the port to reach the motherboard. It is the ideal tool for differentiating a faulty flex cable from a charging management chip issue (U2/Tristar/Hydra).

Equipped with exposed test points for each pin of the connector, it allows for precise measurement of diode values with your multimeter, while providing an immediate visual reading. Compact and robust, it secures your workshop intake process by confirming the diagnosis as soon as the customer arrives. It acts as a transparent interface between the cable and the phone by exposing vital lines: VCC, D+, D-, CC and GND.

Technical Specifications

• Reference: Qianli iBridge A3 (2025/2026 Version)
• Dual Interface: Lightning connector (iPhone/iPad) + USB-C connector (Universal)
• Function: Continuity test, line resistance measurement (Diode Mode)
• Test Points: Full pinout exposed for multimeter probes
• Compatibility: All iOS and Android smartphones and tablets
• Material: High-density PCB with long-lasting reinforced connectors

Advantages for the Repairer

• Phenomenal Time Saving: Diagnosis completed in less than a minute at the customer reception without opening the device.
• Surgical Precision: Identify exactly which line of the connector is failing thanks to diode mode measurements.
• Total Versatility: A single tool to cover 99% of the current mobile market (Lightning & USB-C).
• Risk Reduction: Avoid unnecessary handling of screens and internal flex cables during the testing phase.
• Professionalism: A clean test bench and cutting-edge electronic diagnostic tools to secure your repair packages.

Tip: Use the iBridge A3 in \"Diode Mode\"" with your multimeter (red probe to ground/GND) to compare the values of each pin. An \""O.L\"" value on a data line almost always indicates a physically damaged connector or a severed flex cable inside the device.
