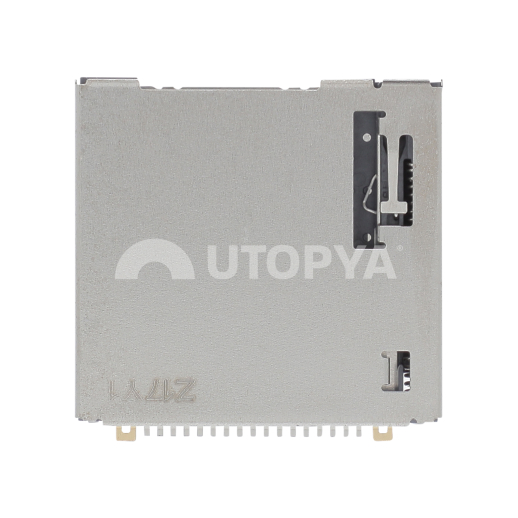

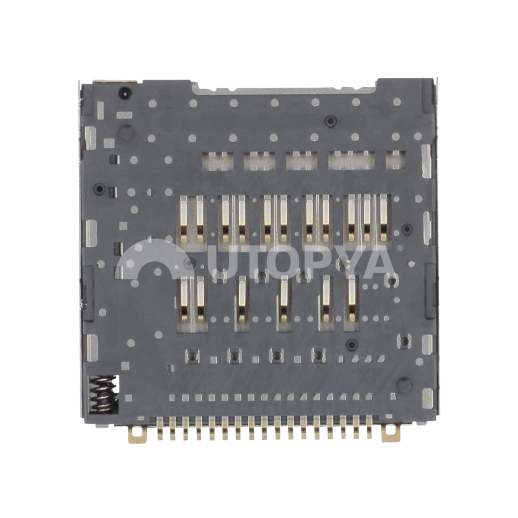

Solder-on Game Cartridge Reader for Nintendo Switch

Description

This cartridge reader is a replacement part designed to restore physical game reading on the Nintendo Switch console. In the event of a failure of the original port (cartridges not detected, reading errors, loose connections, etc.), this component allows for normal operation to be restored. This is a model to be soldered directly onto the motherboard, identical to the original, and intended for professional repairers or users proficient in micro-soldering.

Technical Specifications

• Type: Game cartridge reader (solder slot)
• Compatibility: Nintendo Switch (standard model, all revisions except OLED)
• Function: Reading physical Nintendo Switch game cartridges
• Connectivity: To be soldered onto the motherboard (SMD / aligned pins)
• Format: Identical to the original reader (same dimensions, same pins)
• Material: Metal structure + internal spring-loaded connectors

Benefits

• Allows for the repair of a faulty or damaged cartridge reader
• Professional solution for restoring game reading
• Part compliant with manufacturer standards
• Avoids complete replacement of the motherboard
• Suitable for repair shops and experienced technicians
• Extends the console's lifespan without data loss

Important

There are two replacement formats for the Nintendo Switch reader: the complete module on a ribbon cable and the solder-only connector. This part is the bare internal mechanism, intended to be re-soldered onto your original printed circuit board (PCB). This version follows the CV wiring.
