14 Pin 9.5 cm Ribbon Cable for DualShock 4 Controller

Description

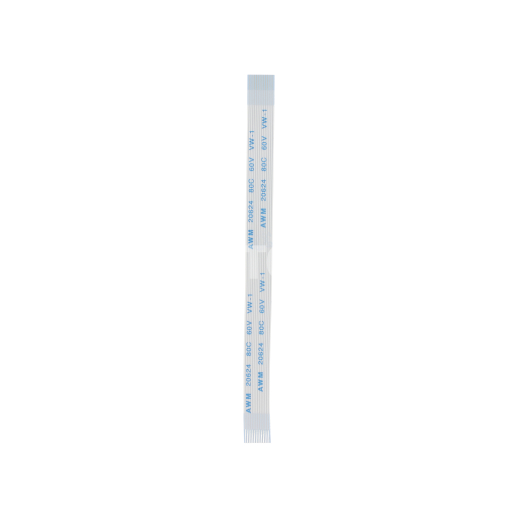

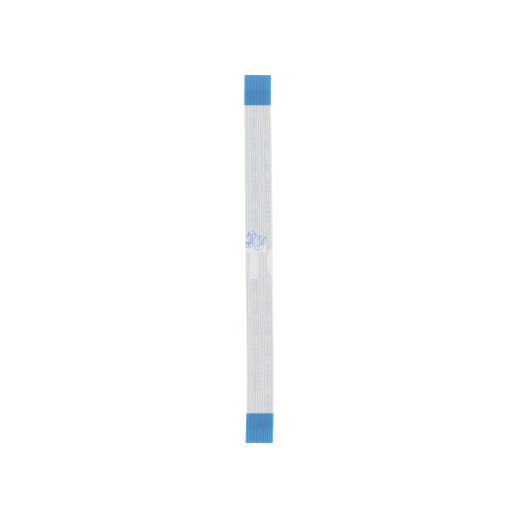

This 14-pin FPC ribbon cable measuring 9.5 cm is used to connect the motherboard to the daughter board (USB/LED board) of the first generation Sony DualShock 4 controllers. It enables signal transfer for charging, USB synchronization, rear LED, and sometimes the touchpad depending on the versions. In case of non-functional USB port or inactive LED, this ribbon cable can be easily replaced to restore communication between the internal boards.

Technical Specifications

• Type: FPC Ribbon Cable (Flexible Printed Cable)
• Number of pins: 14
• Length: 9.5 cm
• Compatibility: DualShock 4 Controllers V1 - models JDM-001 / JDM-011
• Function: connection between the motherboard and daughter board (USB, LED, touchpad)
• Connector: ends to be inserted into ZIF connectors

Advantages

• Repairs charging or non-functional LED issues
• Allows to keep the original motherboard and components
• Quick installation without soldering
• Compatible with V1 versions of DualShock 4 controller
• Part compliant with original dimensions and specifications
