DOTTORPOD iScrews Organiser with Disassembly Diagram for iPhone

Description

The iScrews organiser, developed by Italian engineering firm DottorPod, is an essential workshop tool for the precision maintenance and refurbishment of the Apple iPhone range. Designed specifically for professional repairers and micro-electronics technicians, this tray definitively solves the problem of managing micro-screws of varying lengths, threads, and diameters. During the complete disassembly of a smartphone, swapping a screw can create pressure points on the internal PCB circuits, puncture hidden multi-layer tracks, or permanently strip the chassis anchor thread ('Long Screw Damage').

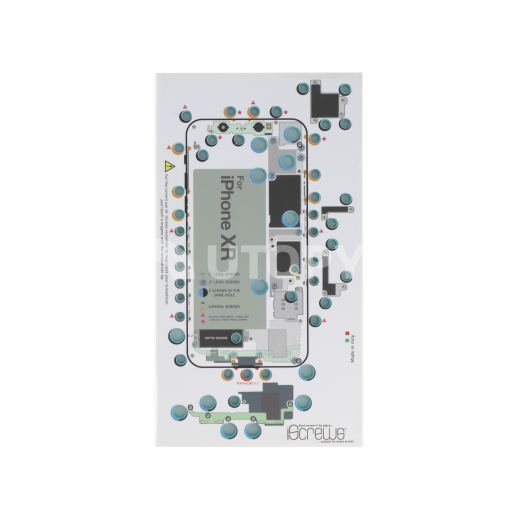

The iScrews structure is based on the layering of a high-fidelity, full-colour technical diagram and a top matrix made of moulded transparent plastic. This cover features individual compartments positioned homothetically to the actual layout of components inside the device (screen ribbons, battery support, TrueDepth camera, charging connector). The bottom of each compartment includes a mechanical stabilisation zone that holds the isolated screw firmly in place, thereby eliminating the risk of accidental loss due to compressed air, vibrations from oscillating tools, or slips on the workbench.

Thanks to its slim and compact profile, this organiser fits perfectly under the microscope's field of view or in the immediate vicinity of the ESD soldering mat. Instant visual identification of screw threads significantly speeds up the critical reassembly phase. The technician gains productivity and secures their after-sales service return rate by ensuring that no internal fastening parts have been forgotten or incorrectly positioned.

Technical Specifications

• Manufacturer reference: iScrews Series By DottorPod Italia
• Technology / Material: Rigid support composite and high-transparency thermo-moulded polymer top layer
• Compatibility: Specific to each generation of Apple iPhone smartphone (select the corresponding model)
• Dimensions: Format optimised for micro-mechanical workstations (approximately 170 mm x 120 mm)
• Weight: 100 g
• Power / Standards: Passive mechanical solution without electrical power / Dielectric insulating coating
• Marking type: Full-colour technical printing of internal modules (Motherboard, Battery, Taptic Engine, Shield plates)
• Retention system: Cylindrical geometry compartments preventing components from tipping or rolling

Workshop Advice & Usage

For quick and effortless retrieval during intensive reassembly phases, use a precision screwdriver equipped with a magnetically calibrated tip. This will allow you to lift the screw instantly from its compartment without damaging its head. Avoid applying aggressive solvents such as acetone directly to the transparent surface to prevent clouding the plastic or erasing the underlying diagram. Simple periodic cleaning using a microfibre cloth lightly dampened with 99% isopropyl alcohol is sufficient to remove skin oil residues and soldering flux.
