16-Piece Full Button Kit for PS5 DualSense Controller (Black) - BDM-010 Version

Description

This 16-piece replacement button kit is a comprehensive technical solution designed for maintenance technicians and PlayStation 5 controller refurbishment professionals. Engineered to restore the aesthetic and functional integrity of DualSense controllers, this set addresses premature coating wear, shell scratches, or the breakage of internal mounting tabs, which are common on triggers during intensive use.

Each component is injected in high-density ABS polymer, selected for its resistance to mechanical stress and sweat acidity. Machining tolerances strictly adhere to original specifications to preserve the "travel" (button travel) and initial tactile feedback. The L2 and R2 triggers are specifically moulded to integrate perfectly with the haptic feedback mechanism axes unique to the first revision of the controller, ensuring smooth force transmission without parasitic friction against the internal chassis.

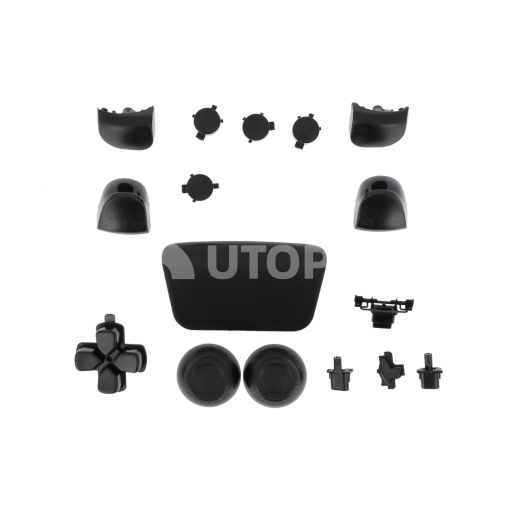

The set includes all front and side control elements: the D-pad, the four action buttons (triangle, circle, cross, square), the PS button, the Create and Options buttons, as well as the L1/R1 and L2/R2 trigger blocks. The matt black finish ensures perfect visual consistency for a "factory-fresh" refurbishment or for customising controllers of different colours.

Technical Specifications

• Manufacturer Reference: BDM-010 Series Compatible
• Technology / Material: High-resistance ABS polymer
• Compatibility: Sony DualSense controller model CFI-ZCT1W (BDM-010 chassis only)
• Dimensions: Manufacturer standard (1:1 scale)
• Weight: 25 grams
• Power / Standards: Passive mechanical components
• Number of pieces: 16 elements

Workshop Advice & Usage

Before installation, it is imperative to identify the controller's motherboard version. This kit is exclusively compatible with the BDM-010 revision (recognisable by the absence of a "V2" logo on the circuit board or by the shape of the L2/R2 spring supports). During reassembly, particular attention must be paid to the positioning of the trigger springs and the conductive silicone membranes. Misalignment of the membrane under the action buttons can reduce the responsiveness of the carbon contact or cause unwanted "double clicks".
